特别提醒，本文所涉及的源码是go1.21.0 darwin/amd64
文件位置：runtime/slice.go

1 数据结构

1
2
3
4
5
type slice struct {
    array unsafe.Pointer
    len   int
    cap   int
}
  • array：指向存储元素内存空间的起始地点
  • len：切片的长度
  • cap：切片的容量

2 初始化

1
2
3
4
5
6
7
8
9
10
11
12
13
func makeslice(et *_type, len, cap int) unsafe.Pointer {
    // 判断分配的内存是否会溢出
    mem, overflow := math.MulUintptr(et.Size_, uintptr(cap))
    if overflow || mem > maxAlloc || len < 0 || len > cap {
        mem, overflow := math.MulUintptr(et.Size_, uintptr(len))
        if overflow || mem > maxAlloc || len < 0 {
            panicmakeslicelen()
        }
        panicmakeslicecap()
    }
    // 分配内存
    return mallocgc(mem, et, true)
}

3 扩容

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
func growslice(oldPtr unsafe.Pointer, newLen, oldCap, num int, et *_type) slice {
    // 旧切片的长度
    oldLen := newLen - num
    if newLen < 0 {
        panic(errorString("growslice: len out of range"))
    }
    // 元素大小为0，则直接分配
    if et.Size_ == 0 {
        // append should not create a slice with nil pointer but non-zero len.
        // We assume that append doesn't need to preserve oldPtr in this case.
        return slice{unsafe.Pointer(&zerobase), newLen, newLen}
    }
    // 判断新切片的容量大小
    newcap := oldCap
    doublecap := newcap + newcap
    // 如果新切片的长度大于旧切片容量的两倍，则将新切片的长度赋值给容量
    if newLen > doublecap {
        newcap = newLen
    } else {
        const threshold = 256
        // 旧切片的容量小于256
        if oldCap < threshold {
            // 两倍扩容
            newcap = doublecap
        } else {
            // 一直增加，直到大于切片的长度
            for 0 < newcap && newcap < newLen {
                // 扩容速度为1/4的原来容量+固定值192
                newcap += (newcap + 3*threshold) / 4
            }
            // 超过int32类型大小，则将长度赋值给容量
            if newcap <= 0 {
                newcap = newLen
            }
        }
    }

    var overflow bool
    var lenmem, newlenmem, capmem uintptr
    switch {
    case et.Size_ == 1:	// 元素大小为1
        lenmem = uintptr(oldLen)
        newlenmem = uintptr(newLen)
        capmem = roundupsize(uintptr(newcap))
        overflow = uintptr(newcap) > maxAlloc
        newcap = int(capmem)
    case et.Size_ == goarch.PtrSize:	// 元素是指针类型
        lenmem = uintptr(oldLen) * goarch.PtrSize
        newlenmem = uintptr(newLen) * goarch.PtrSize
        capmem = roundupsize(uintptr(newcap) * goarch.PtrSize)
        overflow = uintptr(newcap) > maxAlloc/goarch.PtrSize
        newcap = int(capmem / goarch.PtrSize)
    case isPowerOfTwo(et.Size_):	// 元素大小是2的幂
        var shift uintptr
        if goarch.PtrSize == 8 {
            shift = uintptr(sys.TrailingZeros64(uint64(et.Size_))) & 63
        } else {
            shift = uintptr(sys.TrailingZeros32(uint32(et.Size_))) & 31
        }// 通过移位操作，性能更高效
        lenmem = uintptr(oldLen) << shift
        newlenmem = uintptr(newLen) << shift
        capmem = roundupsize(uintptr(newcap) << shift)
        overflow = uintptr(newcap) > (maxAlloc >> shift)
        newcap = int(capmem >> shift)
        capmem = uintptr(newcap) << shift
    default:
        lenmem = uintptr(oldLen) * et.Size_
        newlenmem = uintptr(newLen) * et.Size_
        capmem, overflow = math.MulUintptr(et.Size_, uintptr(newcap))
        capmem = roundupsize(capmem)
        newcap = int(capmem / et.Size_)
        capmem = uintptr(newcap) * et.Size_
    }

    if overflow || capmem > maxAlloc {
        panic(errorString("growslice: len out of range"))
    }
    // 新的内存地址
    var p unsafe.Pointer
    if et.PtrBytes == 0 {	// 无指针
        p = mallocgc(capmem, nil, false)
        memclrNoHeapPointers(add(p, newlenmem), capmem-newlenmem)
    } else {
        // 有指针
        p = mallocgc(capmem, et, true)
        if lenmem > 0 && writeBarrier.enabled {
            bulkBarrierPreWriteSrcOnly(uintptr(p), uintptr(oldPtr), lenmem-et.Size_+et.PtrBytes)
        }
    }
    memmove(p, oldPtr, lenmem)

    return slice{p, newLen, newcap}
}

扩容规则：

  1. 如果新切片的长度大于旧切片容量的两倍，则直接将新切片的长度作为容量
  2. 容量小于256，直接两倍扩容
  3. 大于256，则循环扩容加上1/4容量和一个固定值192，

4 切片拷贝

4.1 赋值拷贝

1
2
s1 := []int{1,2,3,4,5}
s2 := s1[1:]

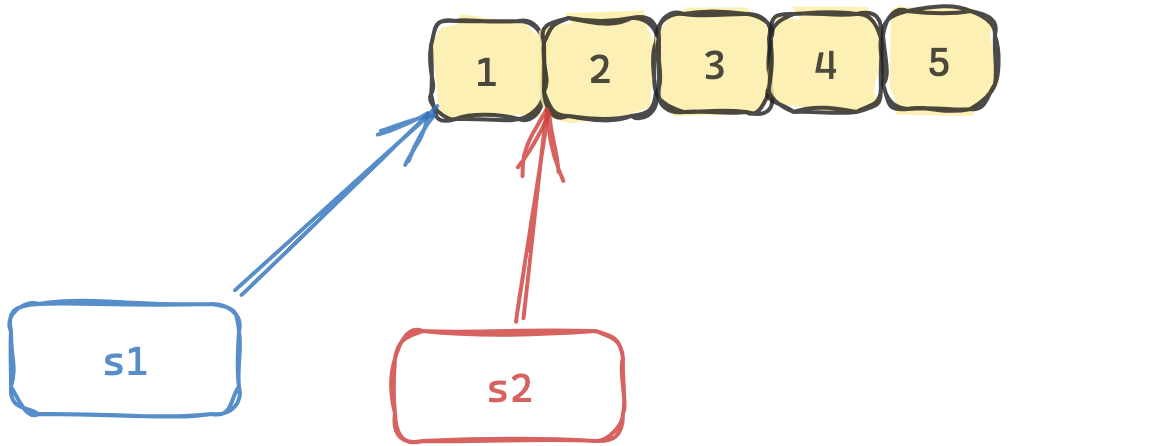

这种通过赋值来拷贝的，两者会共用一个底层数组，意思就是两者指向的元素是相同的，即

image-20230901214335034

4.2 copy或者slicecopy

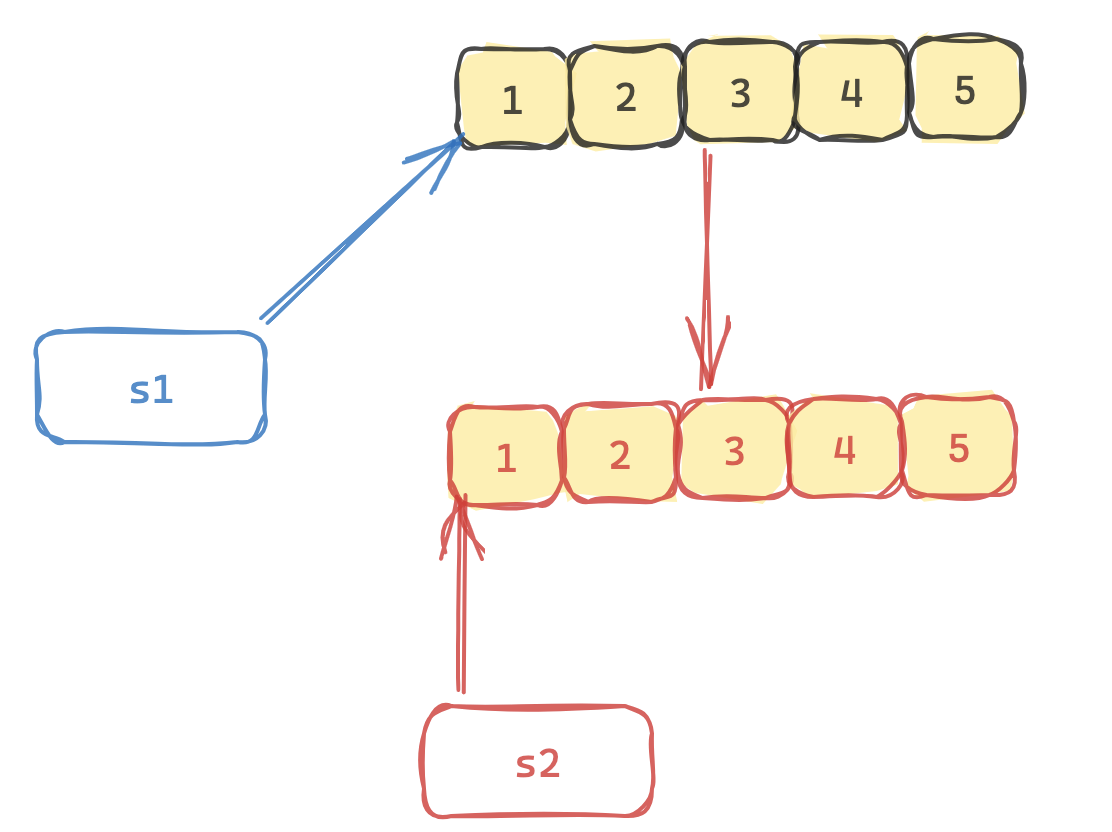

如果不想要两个指向的同一个数组，则通过copy或者slicecopy来进行拷贝，两种拷贝方式都会通过 runtime.memmove将整块内存的内容拷贝到目标的内存区域中

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
func slicecopy(toPtr unsafe.Pointer, toLen int, fromPtr unsafe.Pointer, fromLen int, width uintptr) int {
    if fromLen == 0 || toLen == 0 {
        return 0
    }
    n := fromLen
    if toLen < n {
        n = toLen
    }
    if width == 0 {
        return n
    }
    if size == 1 { // common case worth about 2x to do here
        *(*byte)(toPtr) = *(*byte)(fromPtr) // known to be a byte pointer
    } else {
        memmove(toPtr, fromPtr, size)
    }
    return n
}

image-20230901214757321

5 追加和删除

追加操作比较简单通过append()即可实现

1
2
s := []int{2,3,4}
s = append(s,5)	// [2,3,4,5]

删除操作有如下几种情况

1
2
3
4
s := []int{0,1,2,3,4}
s = s[1:]	// [1,2,3,4]

s = append(s[:2],s[3:]...)	// [0,1,3,4]
